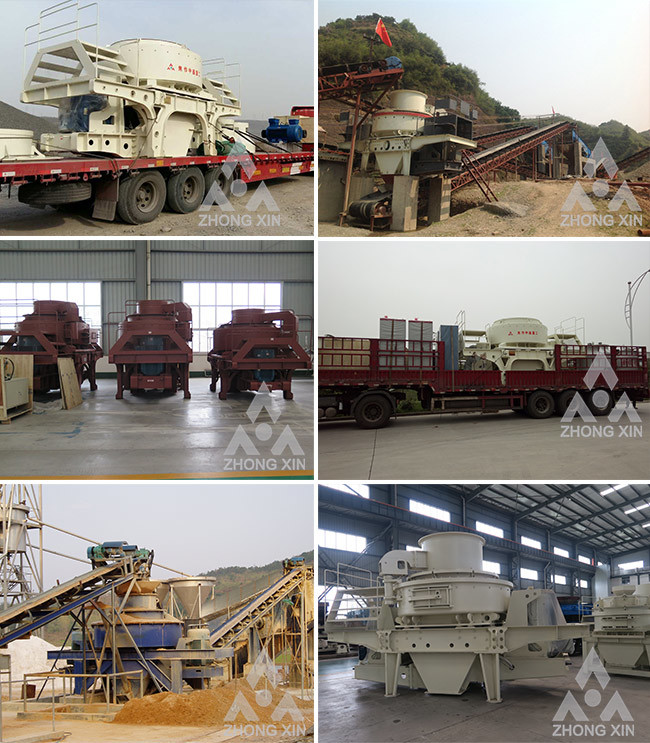

Sand making machine vertical shaft impact crusher
sand machine introduction
VSI series vertical shaft impact crusher provides sand and gravel
aggregates for highways, high-speed railways, high-rise buildings,
municipal engineering, hydropower dam construction, and concrete
mixing plants. It is an equipment for artificial sand making and
stone shaping.
Applicable materials: cobblestone, basalt, granite, iron ore,
copper ore, cement, artificial sand, fluorite, limestone
Application areas: used in aggregate shaping, machine-made sand,
asphalt concrete, building materials, mining, chemical industry,
highway, railway, metallurgy, construction, highway, water
conservancy and other industries
Product advantages
1,Vertical Shaft Impact Crusher“stone striking stone” working
principle, high efficiency, low electricity consumption, and high
efficiency crushing.
2,Strong ability of through the non-crushing material, low effects
by the material moisture content.
3,Suitable to crush stones with mid-hardness, high hardness, and
super high hardness.
4,Vertical Shaft Impact CrusherMechanism for the production of
sand, the gradation of finished product is in an adjustable
fineness modulus.,
5,Simple structure, low cost, easy operation/ maintenance and
installation.
6,Low noise and the dust pollution.
7,Low weight and various installation, can be installed on mobile.,
Specification
| Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | VSI1145 |
| Capacity (T/H) | Surrounding feed and center feed | 120-180 | 200-260 | 300-380 | 450-520 | 500-640 |
| Full center feed | 60-90 | 100-130 | 150-190 | 225-260 | 250-360 |
The max feeding size(mm) | Soft stone | 35 | 40 | 45 | 50 | 50 |
| Hard Material | 30 | 35 | 40 | 45 | 45 |
| Speed(r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | 1200-1390 |
| Double motor power(kW) | 110 | 180 | 264 | 400 | 440 |
| Dimension L×W×H (MM) | 3700×2150 ×2100 | 4140×2280 ×2425 | 4560×2447 ×2778 | 5000×2700 ×3300 | 5100×2790 ×3320 |
| Weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | 26 |
| Lubrication station | Double oil pump motor power(kW) | 2×0.55kW |
| Security | One dual oil pump works one by one, and the standby oil pump is
automatically turned on when the flow is low. High oil temperature,
automatic shutdown without oil return,Air cooler lowers oil
temperature, heater warms up oil temperature in winter. |
| Over Dimension L×W×H(mm) | 1200Х790Х1120 |
| Tank heater power(kW) | 2 |
Working Principle
Vertical shaft impact crusher Working Principle:The material falls
from the upper side of machine, then into the impeller, with the
effect of centrifugal force, the material was crushed with other
parts of the material which shunt around the impeller in a umbrella
shape. After the cross impacting, the materials will be forming an
eddy current and then impact, crush with each other again, then
discharging from the lower part. The whole system forms a close
circuit and through multi-cycles,matched granularity of the product
by the control of screen set
