Introduction of Vibrating Screen
YK vibrating screen is a new type of multi-layer, it is widely used
for product grading in departments of mining area, sandstones,
building materials, transportation, energy, chemical industry, etc.
It is particularly applicable to heavy type, middle type, fine
screening and many other screening operations, and is the ideal
screening equipment for primary crushing, secondary crushing and
finished materials.
vibrating sieves are used to separate materials into various sizes
for further processing or for end use. The material is separated by
passing through a vibrating “screen or meshes” which has a number
of different sized according to customer’s requirements. The end
products can then be used in the building and construction
industries. It feature advanced structure, powerful vibrating
forces, low vibration noise, easy maintenance, high durability and
etc.

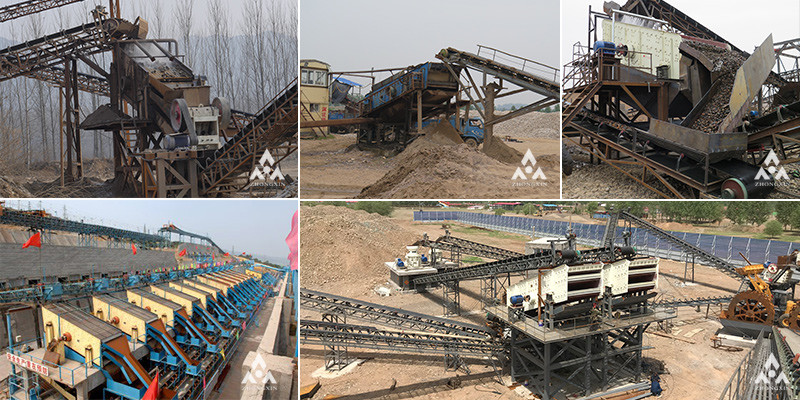

The vibrating screen with circular motion is specially designed for
quarry to separate crushed stone material into different sizes, and
is also used as a grading machine in coal dressing, ore dressing,
construction material, electric and chemical industries.
Advantages of Vibrating Screen
1. High efficiency, low energy consumption and low maintenance
cost.
2. Simple structure, reliable performance and low maintenance cost.
3. Fully enclosed structure, no dust pollution.
4. The station is stable and the operation is stable.
5. The utilization rate of the screen is high, the unit area is
large, it is not easy to be blocked, and the screen is easy to
replace.
6. High-precision sieve, large processing capacity, etc.
Circular Vibrating Screen uses electric exciter as vibrating
source, the material will be thrown around the screen, at the same
time doing forward sports, in order to achieve the screening
purpose. Material from the feeder evenly enters into the Circular
Vibrating Screen's feeding inlet.
with multilayer sieves to produce various of products and
unqualified products on the screen or under the screen, then
discharging from the outlet repectively. Circular Vibrating Screen
can be used in the automatic production line.
Technical Data of Vibrating Screen
| Model | Screen Size(mm) | Layers | Screen Mesh (mm) | Max Feed Size(mm) | Capacity (t/h) | Power (Kw) | Vibrating Frequency(r/min) | Double Swing (mm) |
| 2YK1237 | 3700*1200 | 2 | 3-80 | 100 | 10-80 | 11 | 750-950 | 5-9 |
| 3YK1237 | 3700*1200 | 3 | 3-80 | 100 | 10-80 | 11 | 750-950 | 5-9 |
| 2YK1548 | 4800*1500 | 2 | 3-80 | 100 | 30-200 | 15 | 750-950 | 5-9 |
| 3YK1548 | 4800*1500 | 3 | 3-80 | 100 | 30-200 | 15 | 750-950 | 5-9 |
| 2YK1848 | 4800*1800 | 2 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
| 3YK1848 | 4800*1800 | 3 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
| 2YK1860 | 6000*1800 | 2 | 3-80 | 100 | 60-300 | 22 | 750-950 | 5-9 |
| 3YK1860 | 6000*1800 | 3 | 3-80 | 100 | 60-300 | 22 | 750-950 | 5-9 |
| 4YK1860 | 6000-1800 | 4 | 3-80 | 100 | 60-300 | 30 | 750-950 | 5-9 |
| 2YK2160 | 6000*2100 | 2 | 3-80 | 100 | 80-400 | 22 | 700-900 | 5-9 |
| 3YK2160 | 6000*2100 | 3 | 3-80 | 100 | 80-400 | 30 | 700-900 | 5-9 |
| 4YK2160 | 6000*2100 | 4 | 3-80 | 100 | 80-400 | 30 | 700-900 | 5-9 |
| 2YK2460 | 6000*2400 | 2 | 5-80 | 100 | 100-500 | 30 | 700-900 | 5-9 |
| 3YK2460 | 6000*2400 | 3 | 5-80 | 100 | 100-500 | 37 | 700-900 | 5-9 |
| 4YK2460 | 6000*2400 | 4 | 5-80 | 100 | 100-500 | 37 | 700-900 | 5-9 |
