Description

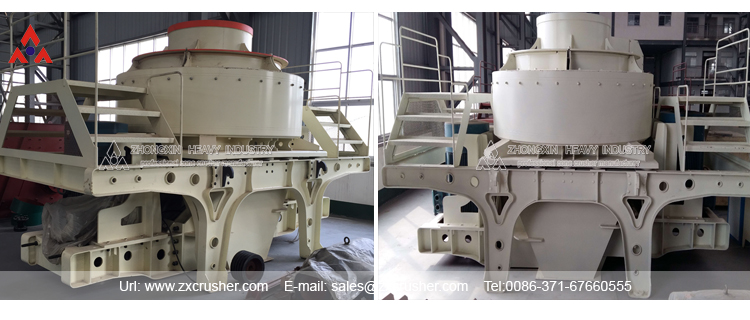

Vertical shaft impact crusher is widely used in fine crushing and rough grinding of metal, mineral, building aggregate, concrete, anti-fire material, glass raw material, manufactured sand and all kinds of metallurgical slug. It is also can utilized in shaping of high rank road surface. Compared with other kind of crusher, it is more advanced in intermediate hard, extra hard and abrasive material.

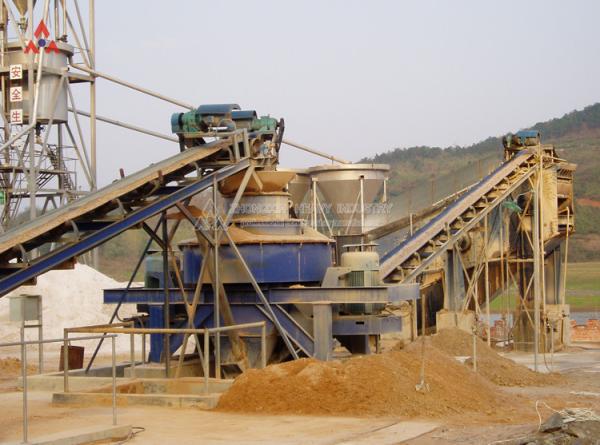

Vertical shaft impact crusher is widely used in all kinds of minerals. It provides the high quality sand and crushed stone aggregate to the high-speed railroad, high-rise construction, municipal administration construction, water and electricity dam construction, concretes agitation station. It is the most effective machine at present. It is also applicable to crush various stones with different hardness in medium and fine crushing area. It is more advanced in intermediate hard, extra, extra hard and abrasive material crushing.

Features

1.Simple structure , lower operation cost.

2.Strong ability of through the non-crushing material, low effects by the material moisture content.

3.Suitable to crush stones with mid-hardness, high hardness, and super high hardness.

4.Mechanism for the production of sand, the gradation of finished product is in an adjustable fineness modulus.

5. It is suitable to crush midium hard, hard special materials.

6. Excellent product of cubic shape, and small fraction of elongated flaky particle shape.

7.Low weight and various installation, can be installed on mobile.

Working principle

Sand making machinery is also called Sand Maker, which is high-functioned equipment for making sand and shaping,Sand making machine raw material falls down into feed hopper, then enter into impellor through central entrance hole. It is accelarated in high-speed impellor, then is thrown out at speed of 60-75m/s. When it hits impact plate, it is crushed. Final products come downwards though outlet.

Specifications

Zhongxin Heavy industry, a modern mining machinery manufacturer, is specialized in researching and developing, manufacturing and selling multi-cylinder hydraulic cone crusher. It is located in Boai Industrial District of Jiaozuo City in Henan Province, China, covering an area of more than 133,334 m2. One 20000m2 standard workshop has been built in the first phase with annual production capacity of 100 sets multi-cylinder hydraulic cone crusher and comprehensive annual output value of RMB 160,000,000.

Our company mainly manufactures equipment for stone production line, such as XHP multi-cylinder hydraulic cone crusher, jaw crusher, impact crusher, PSG Series Compound Cone Crusher, spring cone crusher, sand making machine, vibrating feeder, vibrating screen etc., which have been exported to more than 30 countries. With the advantages of super-high crushing efficiency and stability, XHP series multi-cylinder hydraulic cone crushers are highly appreciated by customers and widely applied to the crushing process of various ore or hard stone and cobblestone sand making and have achieved great effect.
