Description

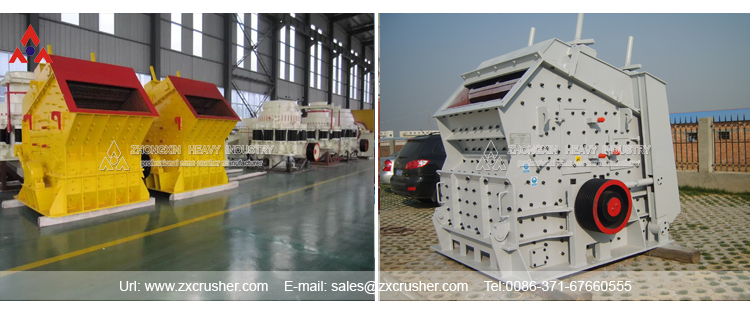

Impact Crusher is widely used for crushing ore in mining, highway, railway, construction, etc. Presently, by practices, its comprehensive function is superior to the cone crusher and the hammer crusher.
Impact Crusher plant is our mature product. It is a kind of crushing equipment using impact energy to crush materials with medium hardness.It is of reasonable structure, wide usage, high efficiency, simple operation and maintenance and excellent safe performance.

Features

1.Easy maintenance, economical reliable
2,High reliability ,High capacity .
4.Long Life of Wear Components Due to Advanced Metallurgy.
5,Simple structure and easy to operate.
6.Easy maintenance and reliable operation.

Working principle

Impact crusher have a crushing chamber which is composed of a movable jaw, a stationary jaw and a edge plate. Driven by electric motor, via motorpully, V-belt and sheave driving eccentric shaft that make movable jaw move in accordance with pre-selected track cause crushing the material which are in the crushing chamber and setting the crushed material by the discharge gate.

Impact crusher crushes material by striking energy. When it works, the motor drives the rotor to rotate at a high speed, on which the blow bar is installed. As soon as the material gets into the affecting area of the blow bar, they will be stroke by the blow bar and be thrown to the impact devices around the rotor. The high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size. The clearance between the impact racks and the rotor can

Specifications

Zhongxin Heavy industry, a modern mining machinery manufacturer, is specialized in researching and developing, manufacturing and selling multi-cylinder hydraulic cone crusher. It is located in Boai Industrial District of Jiaozuo City in Henan Province, China, covering an area of more than 133,334 m2. One 20000m2 standard workshop has been built in the first phase with annual production capacity of 100 sets multi-cylinder hydraulic cone crusher and comprehensive annual output value of RMB 160,000,000.

Our company mainly manufactures equipment for stone production line, such as XHP multi-cylinder hydraulic cone crusher, jaw crusher, impact crusher, PSG Series Compound Cone Crusher, spring cone crusher, sand making machine, vibrating feeder, vibrating screen etc., which have been exported to more than 30 countries. With the advantages of super-high crushing efficiency and stability, XHP series multi-cylinder hydraulic cone crushers are highly appreciated by customers and widely applied to the crushing process of various ore or hard stone and cobblestone sand making and have achieved great effect.
